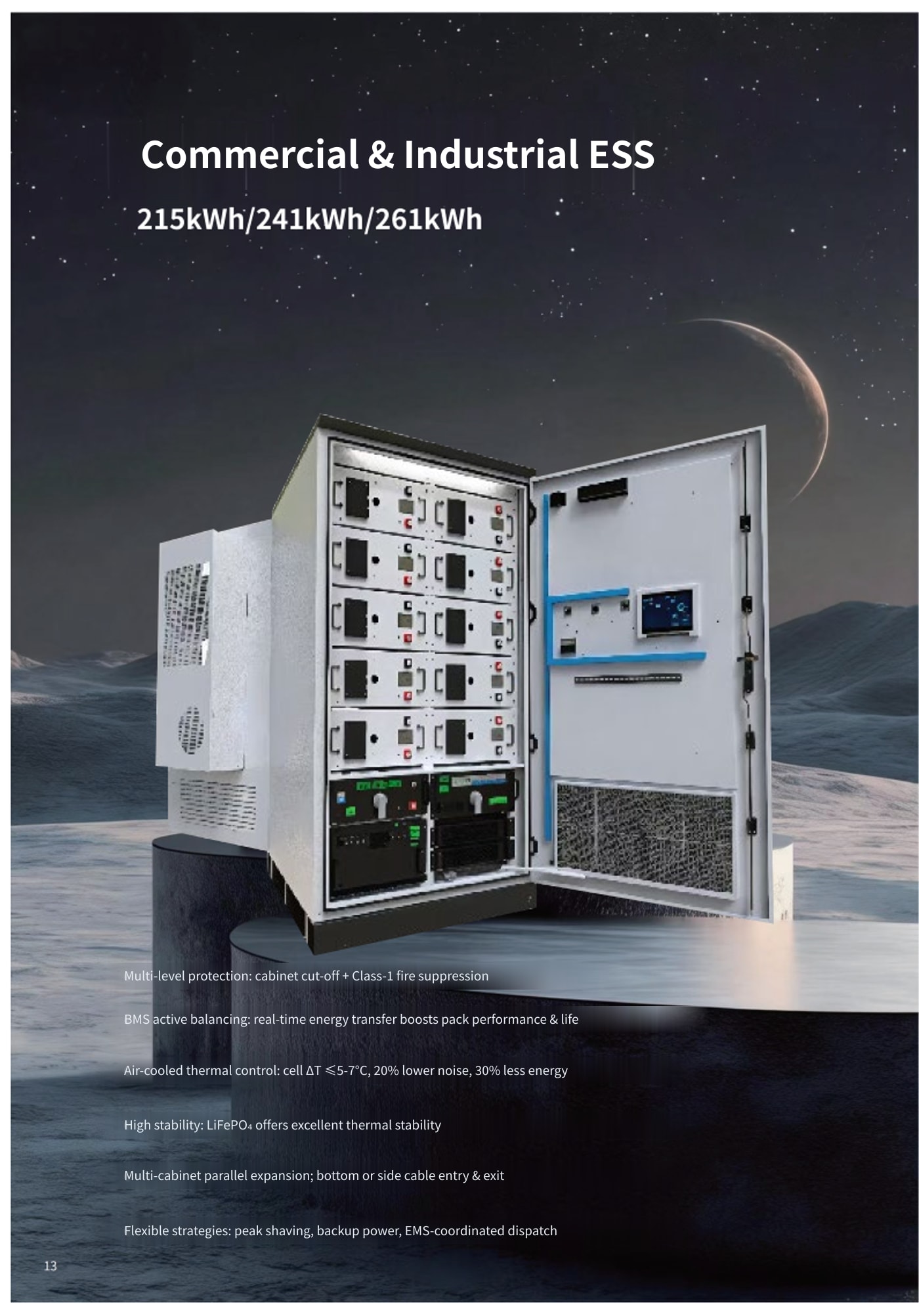

Cabinet-type commercial & industrial energy storage system available in 215kWh, 241kWh and 261kWh configurations — LiFePO₄ battery, liquid-free forced-air cooling, integrated PCS and MPPT.
Models
- 215kWh / 241kWh / 261kWh (three configurations)
Battery System
- Battery Capacity: 280Ah / 314Ah / 314Ah
- Cell Configuration: 1P240S / 1P240S / 1P260S
- Nominal Voltage: 768V / 768V / 832V
- Operating Voltage Range: 672V~852V / 672V~852V / 728V~910V
- Rated Charge / Discharge Power: 100kW / 125kW / 135kW
- Dimensions (W×D×H): 1400 × 1160 × 2100 mm
- Weight: 2.4T / 2.52T
- Round-trip Efficiency: ≥88%
- Cooling Method: Forced air cooling
- Cycle Life: ≥8000 cycles
- Protection Rating: IP54
- Fire Suppression System: Aerosol (optional heptafluoropropane / perfluorohexanone)
- Altitude: ≤3000 m
- Communication: Ethernet, 4G/5G (optional)
- Communication Protocol: RS485 / CAN
PCS (Power Conversion System)
- Operating Voltage Range: 615V~950V (3W+PE) / 650V~950V (3W+N+PE)
- Inputs: 1
- Max. Charge / Discharge Current: 170A
- Rated Voltage: 230 / 400Vac
- Wiring: 3P4L / 3P3L
- Rated Power: 100kW / 125kW / 135kW
- Max. Power: 110kW / 137.5kW / 148kW
- Power Factor: 0.99
Grid Connection
- Grid Port Power: 200kW / 500kW
- Grid Port Max. Current: 318A / 794A
- Load-side Port Power: 200kW / 500kW
- Grid Port Voltage: 400Vac / 400Vac
- Grid Voltage Range: 400 ±15%
- Rated Frequency: 50 / 60Hz
- Wiring: 3P4L / 3P3L
PV / MPPT
- MPPT Voltage Range: 200V~850V
- Rated Voltage: 600V
- Start-up Voltage: 250V
- Inputs: 4
- Max. PV Current: 200A / 100A×2 / 50A×4
- Short-circuit Current: 60A×4
Communication & Protection
- Communication Ports: EMS: RS485 / Battery: CAN or RS485
- Protection Rating: IP20 (core control section IP5X)
Note: specifications are subject to continuous product development — product form, parameters and performance are for reference only, please refer to the official product specification sheet.
