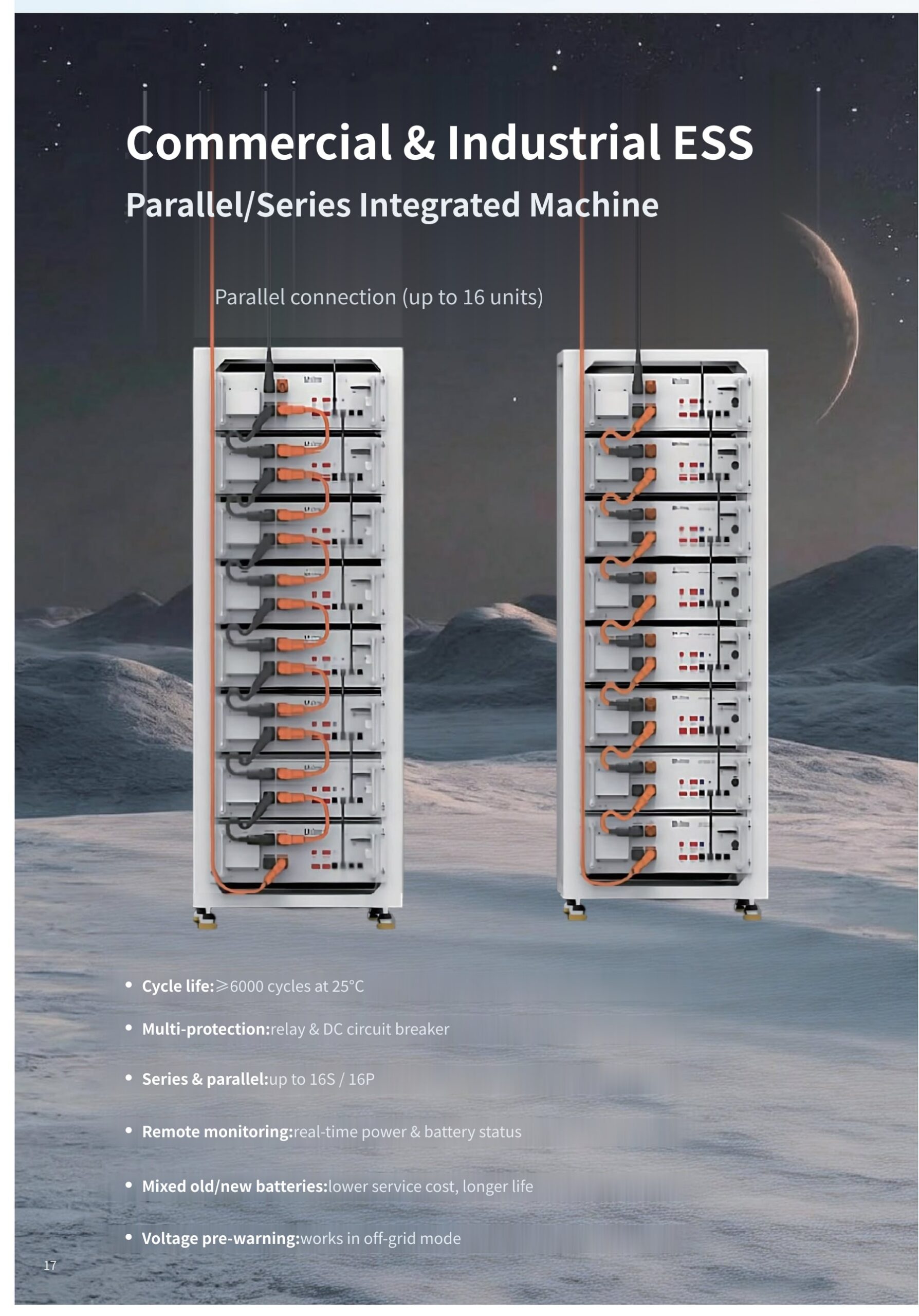

5.1kWh LiFePO₄ battery module with parallel and series expansion — up to 16 units in parallel or series for flexible commercial & industrial energy storage.
Battery System
- Battery Type: Prismatic LiFePO₄ (LFP)
- Rated Energy: 5.1kWh
- Rated Capacity: 100Ah
- Rated Voltage: 51.2V
- Operating Voltage: 48~56V
- Recommended Charge / Discharge Current: 50A
- Max. Charge / Discharge Current: 60A
- Peak Discharge Current: 120A (3s)
- Peak Discharge Power: 6kW (3s)
- Recommended Depth of Discharge (DOD): 93%
- Cycle Life: ≥6000 cycles (25°C)
- Expansion: 16 units in parallel / 16 units in series
Operating Conditions
- Charging Temperature Range: approx. 0~55°C
- Discharging Temperature Range: approx. -10~55°C
- Recommended Humidity: 5%~95% (non-condensing)
- Cooling Method: Natural cooling
- IP Rating: IP20
Mechanical & General
- Installation: Wall-mounted / floor-standing
- Communication: CAN / RS485
- Color: Black / White
- Net Weight: 45kg
- Dimensions (W×D×H): 442 × 520 × 133 mm
- Safety Protection: Over-current / over-voltage / short-circuit / under-voltage / over-temperature
- Warranty: 5 years
Note: product service life is based on testing at an ambient temperature of 25°C. Specifications are subject to continuous product development — product form, parameters and performance are for reference only, please refer to the official product specification sheet.
