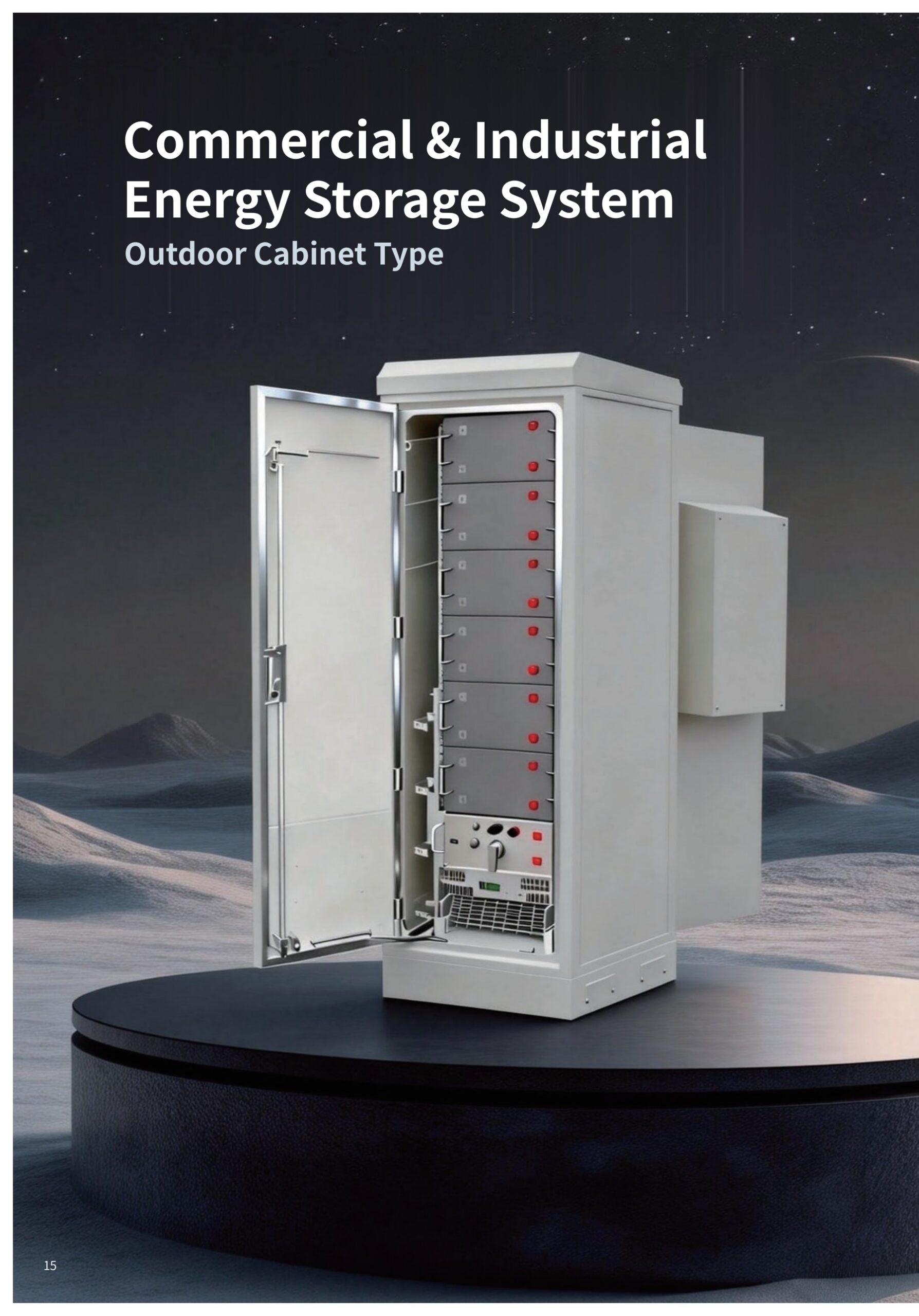

Outdoor cabinet energy storage system for commercial & industrial applications — available in 60kWh (206Ah) and 120kWh (314Ah) configurations.
Battery System
- Battery Capacity: 206Ah (60kWh model) / 314Ah (120kWh model)
- Cell Configuration: 96S1P / 120S1P
- Nominal Voltage: 307.2V / 384V
- Operating Voltage Range: 268.8V~345.6V / 336V~420V
- Rated Charge & Discharge Rate: 0.5C
- Dimensions (W×D×H): 755 × 993 × 2172 mm
- Weight: 691 kg / 1246 kg
- Round-trip Efficiency: ≥88%
- Cooling Method: Forced air cooling
- Cycle Life: ≥8000 cycles
- Protection Rating: IP54
- Fire Suppression System: Aerosol
- Altitude: <3000 m
- Communication: Ethernet, 4G/5G (optional)
- Communication Protocol: RS485 / CAN
PCS (Power Conversion System)
- Nominal Voltage: 307.2V / 384V
- Operating Voltage Range: 268.8V~345.6V / 336V~420V
- Max. Charge / Discharge Current: 103A / 150A
- Max. Charge / Discharge Power: 31.6kW / 57.6kW
- Charging Curve: 3-stage
- Compatible Battery Type: LiFePO₄ (LFP)
Grid Connection & Output
- Rated Grid Voltage: 400V / 230V
- Grid Voltage Range: -20% ~ +15%
- Grid Frequency Range: 50Hz (47~52Hz) / 60Hz (57~62Hz)
- Rated Current: 43.5A / 36.2A
- Rated Output Power: 30kVA / 25kVA
- Max. Output Power: 33kVA / 27.5kVA
- Rated Output Current: 43.5A / 36.2A
- Max. Output Current: 48A / 40A
- Rated Output Voltage: 400V / 230V
- Output Voltage Harmonics: <3% (resistive load)
- Current Harmonics: <5% (at >30% load)
- Power Factor: -0.8 ~ 0.8
- Frequency Range: 50/60Hz
- Unbalance: 100%
- Overload Capability: 48A<Iload<54A/100s, 54A<Iload<65A/100ms (60kWh model) / 39.8A<Iload<45A/100s, 45A<Iload<54A/100ms (120kWh model)
Note: Specifications are subject to continuous product development. Product form, parameters and performance are for reference only — please refer to the official product specification sheet for details.
